Turtle Diagram For Manufacturing Process. The diagram looks like the body of a turtle, with components as body, legs, head, and tail. Processes are made up of inputs, outputs, criteria, etc, and a turtle diagram visualizes a process to assist in their effective execution and improvement.
34 Turtle Diagram For Manufacturing Process Wiring from skippingtheinbetween.blogspot.com
Below and overview of all related document in. For a system process, this includes information, reports, or data. This diagram that resembles a turtle, details the process, making it easier for the organization to efficiently analyze and understand it, and make effective decisions or improvements.
The Turtle Diagram Has A Number Of Useful Features:
The turtle diagram is made up of 6 areas. 100% (1) 100% found this document useful (1 vote) 3k views 1 page. Includes internal and external customer requirements.
What Is A Turtle Diagram?
A turtle diagram is a visual tool that can be used to detail, in a very precise manner, all of the elements of any given process. Whenever a new process being designed or a major change to a process is planned, a turtle diagram can help to identify all interested parties’ process inputs, such as; The diagram itself looks like the body of a turtle, with each process component as the body, legs, head and tail.
Specifications, Drawings, Work Instructions, Materials, Equipment, Software, Tooling, Suppliers, Skills And Competencies Needed By The Activity To Achieve Its Stated Outputs.

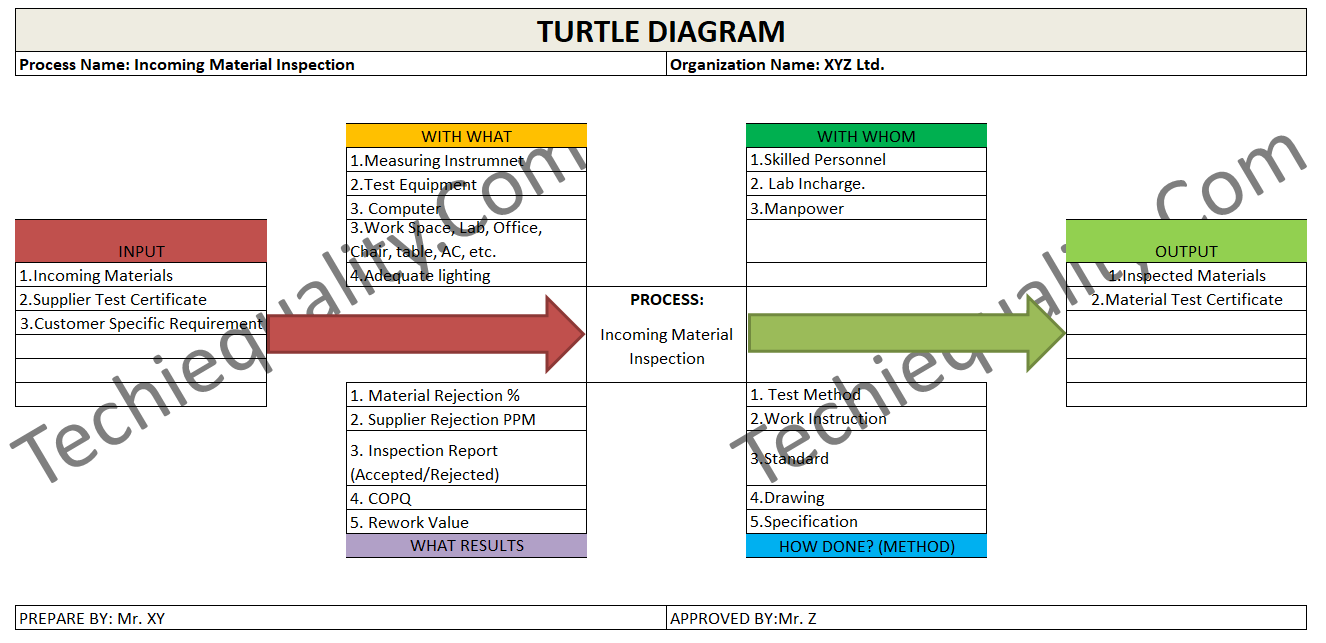

A turtle diagram is a process improvement tool (schematic visual representation) of the key elements that make up a single process. This diagram that resembles a turtle, details the process, making it easier for the organization to efficiently analyze and understand it, and make effective decisions or improvements. Below is an image of a turtle diagram:
It Is Also A Useful Tool For Auditors Conducting A Management System Or Process Audit, Including Manufacturing Or Quality Process.
Its helps to improve the process performance. Methodology, risk appetite, methods for training and reporting. Asking with what , with who , how , and how many results in
A Method Based On Turtle Diagram And Evaluation Model
It helps to understand the process from both a managerial and workforce perspective. For a system process, this includes information, reports, or data. Looking for turtle diagram for manufacturing process related documents, templates, samples, and checklists?
